VW 1200 Beetle: 1958 and 1959 models

Covers Sedan and Convertible
Aug. '57 to July '59 (Non-US) from Chassis No. 1 600 440

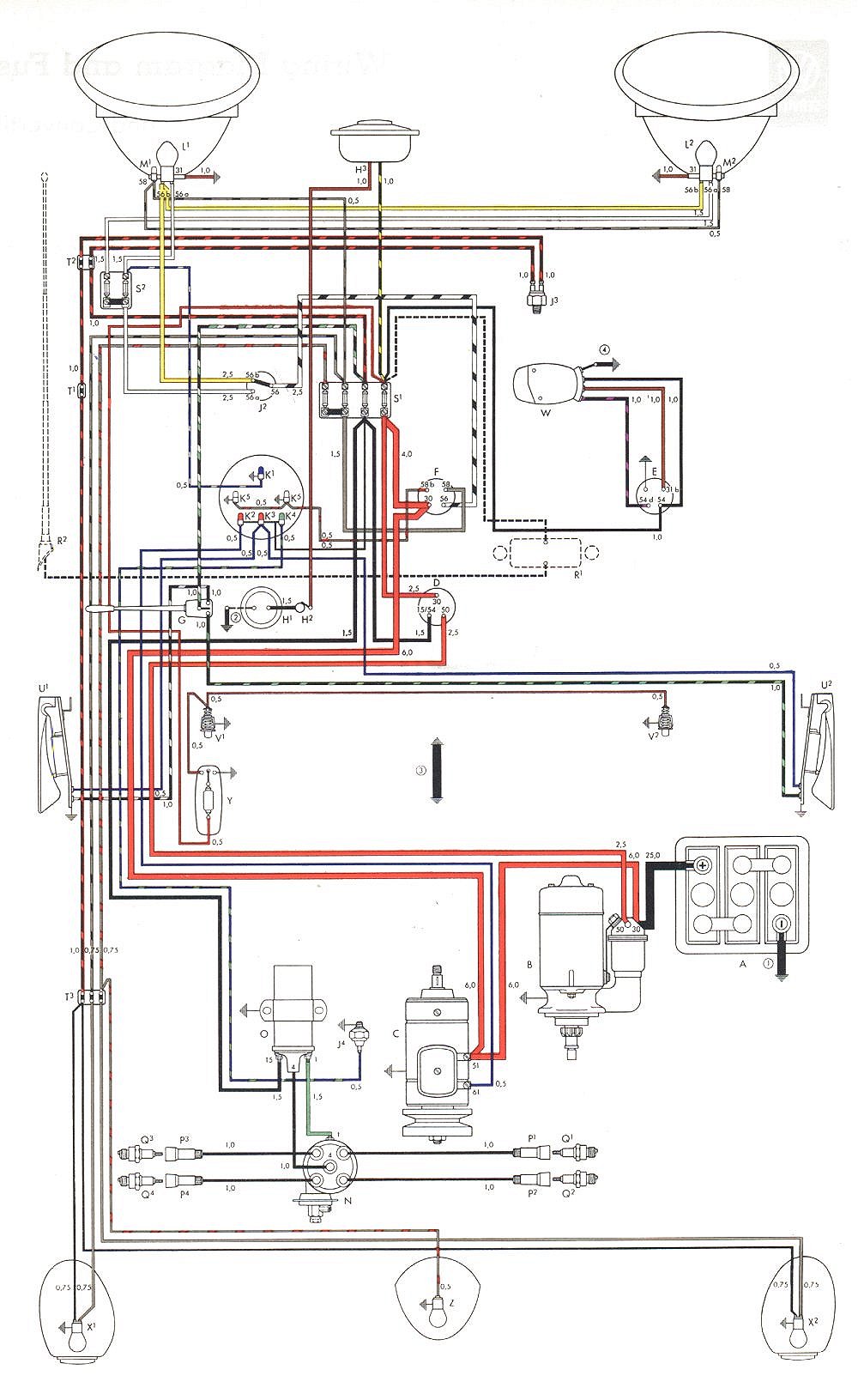

Key to components is below picture

Key to components:

A - Battery
B - Starting Motor
C - Generator
D - Ignition Starter Switch
E - Windshield Wiper Switch
F - Push-Pull-Type Light Switch
and Instrument Panel Lighting
G - Direction Indicator Switch
H1 - Horn Button
H2 - Horn Brush
H3 - Horn
J2 - Headlight Dimmer Switch
J3 - Stop Light Switch
J4 - Oil Pressure Switch
K1 - High Beam Indicator Light
K2 - Generator Control Light
K3 - Direction Indicator Control Light
K4 - Oil Pressure Warning Light
K5 - Speedometer Light
L1 - Bi-filament Bulb for Headlight, Left
L2 - Bi-filament Bulb for Headlight, Right
M1 - Parking Light, Left
M2 - Parking Light, Right
N - Ignition Distributor
O - Ignition Coil
P1 - Spark Plug Connector for Cylinder 1
P2 - Spark Plug Connector for Cylinder 2
P3 - Spark Plug Connector for Cylinder 3
P4 - Spark Plug Connector for Cylinder 4
Q1 - Spark Plug for Cylinder 1
Q2 - Spark Plug for Cylinder 2
Q3 - Spark Plug for Cylinder 3
Q4 - Spark Plug for Cylinder 4
R1 - Radio
R2 - Antenna
S1 - Fuse Box (four Fuses)
S2 - Fuse Box (two Fuses)
T1 - Connector, single
T3 - Connector, triple
U1 - Direction Indicator, Left
U2 - Direction Indicator, Right
V1 - Door Contact Switch, Left (d/L)
V2 - Door Contact Switch, Right (d/L)
W - Windshield Wiper Motor (d/L 3 connections)
X1 - Stop and Tail Light' Left
X2 - Stop and Tail Light, Right
Y - Interior Light
Z - License Plate Light

Ground straps:
1 - Battery Ground Strap
2 - Steering Column Flange
3 - Transmission to Frame
4 - Windshield Wiper Motor to Body
